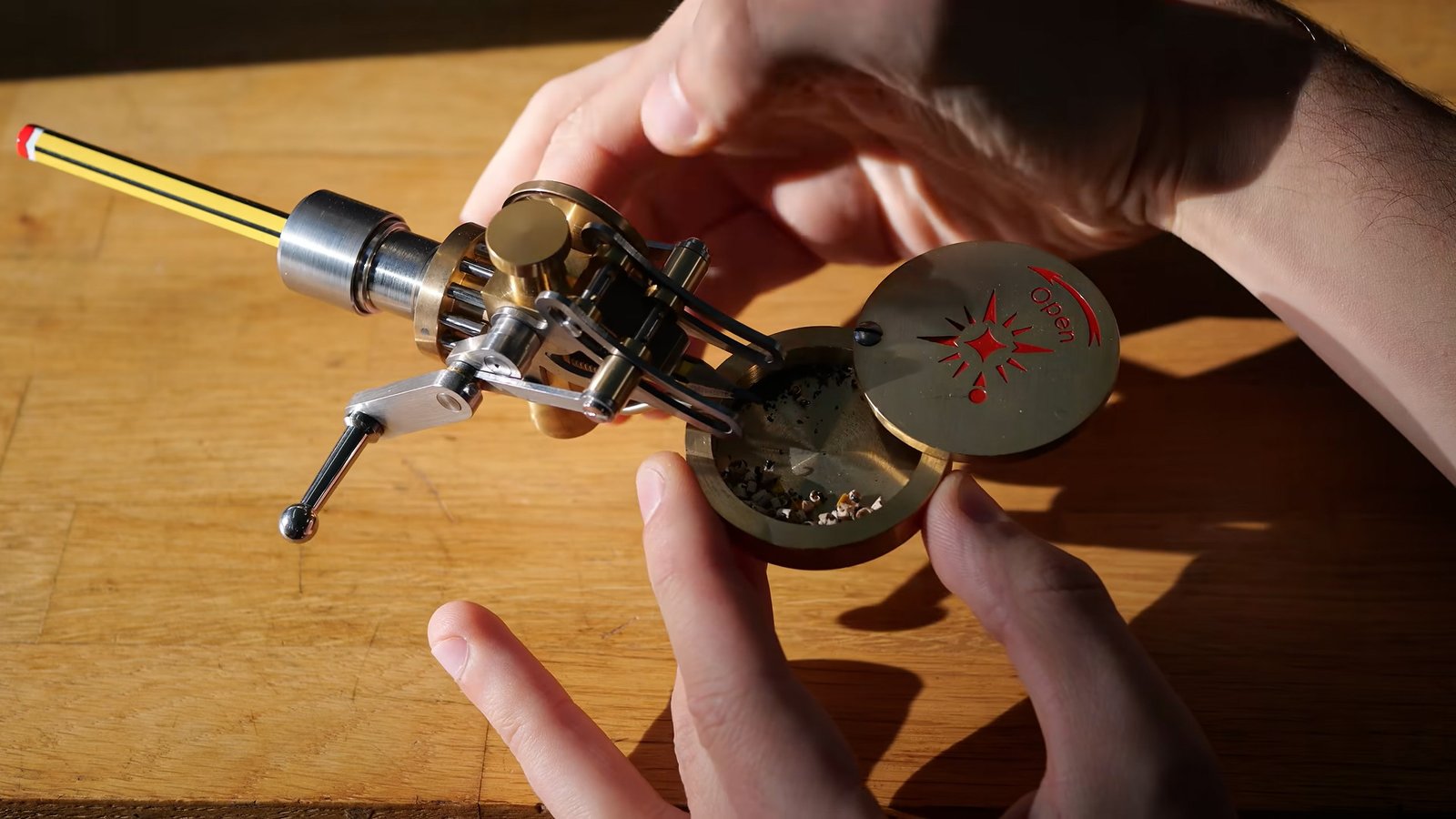

Inspired by the Geneva wheel, [Chronova] developed a fresh intermittent mechanism for improved satisfaction in the sharpener’s operation. Instead of two gear-like mechanisms on a flat plane, the input and output can sit at a 90 degree offset from each other giving room for the blade’s motion. Rotation is input on a part called the indexing pinion which outputs on a lantern pinion.
At every full rotation of the indexing pinion, it interfaces with the lantern pinion moving it two teeth. Because of this quirk, by making the lantern with an odd number of teeth, twice the number of indexing positions are available in the output. At all other points in the pinion’s rotation the lantern is locked in place.
The pencil is held in place with a collect chuck and mounted on a screw coupled to the lantern pinion’s rotational output. This enables the pencil to move forward slightly with every turn of the crank. The project is topped of neatly with a shavings catcher and handle.
It works rather well, but a practical pencil sharpener that does not make. It takes a rather long time, and is fairly laborious to use. But over-engineering machines to do simple tasks is still quite fun!
