Airborne micro particles can be a significant health hazard in a workshop, and thus it’s important to maintain a high standard of ventilation. But monitoring their concentration is also important, and thus there exists a range of sensors to help keep you safe. [WeSpeakEnglish] has taken this idea to the MAX, with a PM2.5 sensor that drives a very large wall mounted display. You’ll never be uncertain what the level is now!

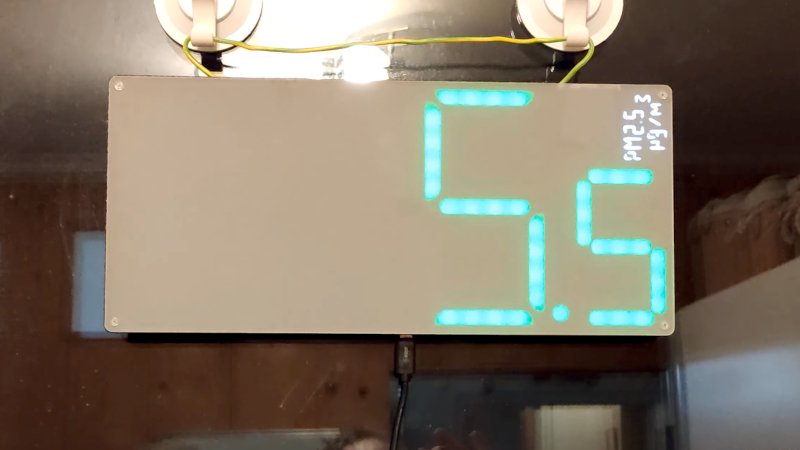

The standout feature of this thing is a huge addressable LED seven segment display PCB, upon the back of which sits a tiny Seeed Studio Xiao board to which the particle sensor is hooked up. The software displays the particle count, and handily changes the colour as the number creeps upwards. Meanwhile should you wish to log the readings, the USB exposes a serial port upon which they are placed.
We can see this is a useful project for anywhere that is likely to have a high particle count, but it’s worth noting also that a large 7-segment display with an ESP32 board attached could have plenty of other uses. Meanwhile this is a nicely finished air quality monitor, but it’s certainly not the first we’ve seen.
